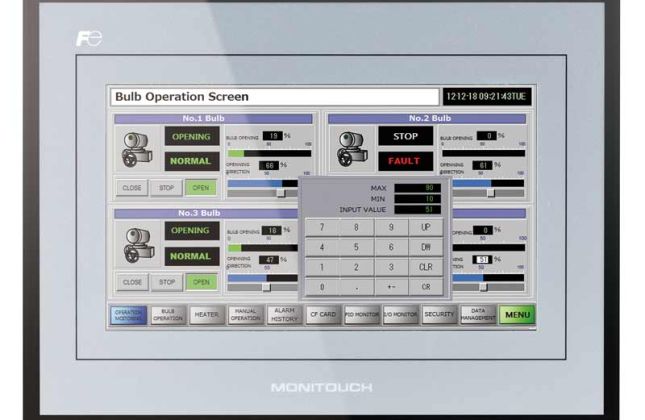

Màn hình cảm ứng TS1100/TS1100i/TS1101i hãng FUJI HAKKO MONITOUCH, Kích thước 10.2", 64K màu, 3 kênh serial RS232/RS422/RS485, lập trình qua cổng USB mini (Tyoe mini B)
Số lượng đặt hàng: Cái
Chính sách giao hàng
Giao hàng bởi Viettel Post Giao hàng bởi Viettel Post
Giao hàng miễn phí TP HCM Giao hàng miễn phí TP HCM
Bảo hành nhanh 2h Bảo hành nhanh 2h
Thông tin sản phẩm
Bình luận

Màn hình cảm ứng TS1100/TS1100i/TS1101i

Kích thước 10.2"

Color: 64K màu

Serial por: RS232, RS422, RS485

LAN port (TS1100i, TS1101i): 100BASE-TX/10BASE-T connector (LAN)

Lập trình qua cổng USB mini (Tyoe mini B)

Specifications of TS1100/TS1101

Model TS1100i TS1100 TS1101i
Display Display size 10.2” Wide
Resolution 800 × 480 dots
Display device TFT color LCD
Colors 65,536 colors
Backlight LED
Luminance 350 cd/m²
Touch switch   Analog resistance film
Memory FROM 10.5 MB
SRAM 128 KB
External interface Serial COM1 RS-422/485, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 * 1bps
COM2 & COM3 RS-232C, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
RS-422/485(two-wire system), Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
Ethernet 100BASE-TX/10BASE-T - 100BASE-TX/10BASE-T
USB (Type A) 1 port (Ver. 2.0,Ver.1.1)
USB (Type mini B) 1 port (Ver. 2.0,Ver.1.1)
Clock Battery Coin-type lithium primary battery
Calendar accuracy Gap±5 sec. per month (Ambient temperature 25 °C)
Power supply Permissible range of voltage DC 24 V ± 10 %
Demand
(maximum rating)
16 W or less
Physical environment Ambient operating temperature 0~50 °C * 2
Ambient storage temperature -10~60 °C * 2
Relative humidity 85 % RH or less(without dew condensation, Max. wet bulb temperature:39 °C or less)
Operation altitude 2,000 meters or less
Operation atmosphere Not exposed to corrosive gas or excessive dust (free of conductive dust)
Contamination level Level 2
Installation conditions Dimensions
W × H × D
283.0 × 220.0 × 42.0 mm
Panel cutout
W × H
257.0 × 199.0 mm (+0.5/-0)
Protect structure Front panel: Compatible with IP65 (when waterproof gasket * 3is used.), Rear cabinet: Compatible with IP20
Form: Single unit, Installation method: Panel mounting
Case color   Black
Compatibility   CE, KC CE, KC, UL, cUL
  • *1 Available only when connected with SIEMENS MPI.
  • *2 Keep wet bulb temperature under 39°C to avoid an accident.
  • *3 Option

Outline drawing of TS1100/TS1101

(Unit: mm)



Part Names

  1. 1Power supply terminal
  2. 2Serial D-sub 9-pin (COM1)
  3. 3Serial D-sub 9-pin (COM2/COM3)
  4. 4100BASE-TX/10BASE-T connector (LAN)
  5. 5USB slave (Type mini B)
  6. 6USB master (Type A)
  7. 7DIP switch
  8. 8Battery

System configuration of TS1100/TS1101



TS1100i/TS1101i

TS1100i/TS1101i

TS1100

TS1100

Download data of TS1100/TS1101

Item Description Language Updated date File size
Hardware Specifications TECHNOSHOT hardware specifications English 2013/6/7 4,122KB Download
Connection Manual Contains instructions about the wiring and setting of communication signals between TECHNOSHOT units and controllers. English 2013/5/14 26,959KB Download
Training Manual Contains instructions for beginners on how to create a TS panel screen. English 2013/4/1 9,868KB Download
Catalog TECHNOSHOT product catalog English 2014/9/25 7,443KB Download
